0,86€

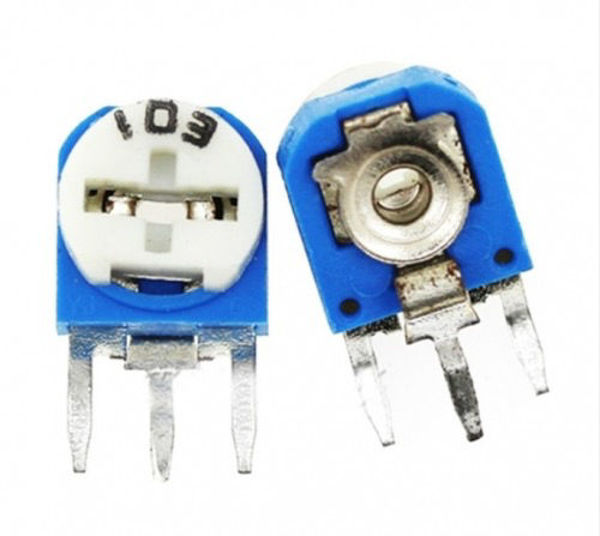

Resistencia variable de 10K, 10uds

Resistencia variable de 200ohm a 1Mega

Disponibilidad: En Stock

SKU: 1987

SKP: P0659

Cantidad:

Los precios no incluyen IVA.

Fotografías NO contractuales

Descripción

Each component material:
Brush: copper
Resistance sheet: electric board
In the foot: iron material, the surface of tin treatment
Corn: iron material, surface light tin treatment
Foot: iron material, surface light tin treatment
Plastic cover: plastic POM, color is white
Plastic box: plastic PBT, the color is blue
Mechanical characteristics:
Rotation angle: 200 ° ± 20 °
Rotational torque: 60 ~ 150g.cm
Stop strength:> 500g.cm
Mechanical strength: resistance film can withstand 1kg pressure does not break
performance:
Resistance range (Ohms): 100 ~ 2M
Resistance deviation: ± 20%
Resistance change characteristics: B
Maximum use voltage: 50V
Rated: 0.1W
Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 30Ω
Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%
Load life: load rated power 3 hours, the maximum resistance change of ± 5%
