Sensor de temperatura de 0-800 grados

Descripción

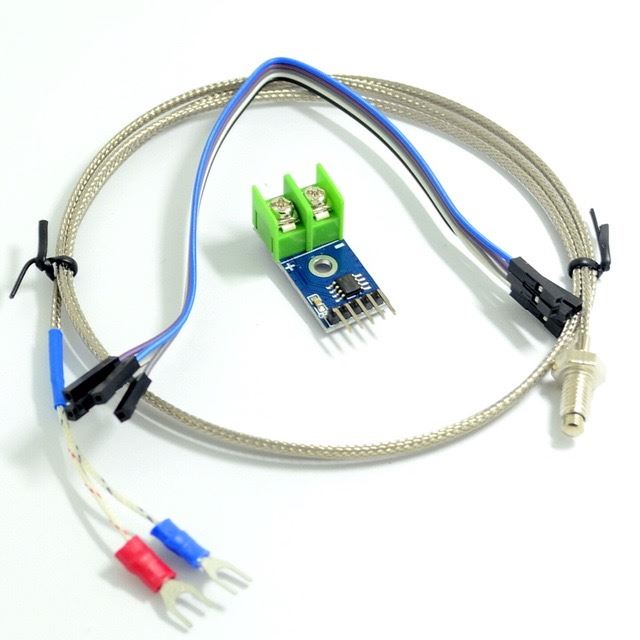

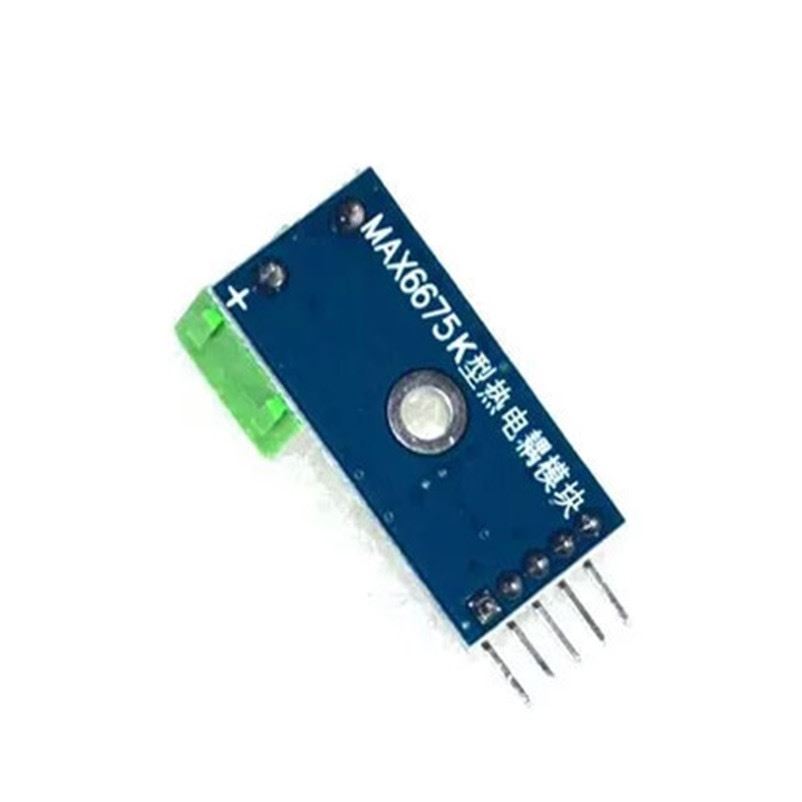

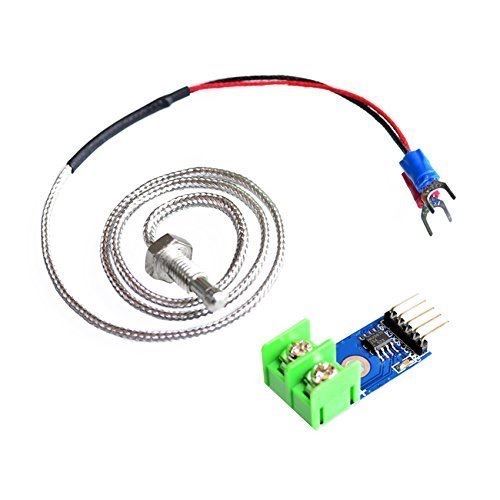

Description: MAXIM MAX6675 is an American company with a cold junction compensation, linearity correction, thermocouple break detection ADC Serial K-type thermocouple, its temperature resolution capability is 0. 25 Degree, cold junction compensation range - 20 ~ + 80 Degree, wide operating voltage range 3. 0 ~ 5. 5V     Operating voltage: 3. 0 ~ 5. 5V Internal integrated cold junction compensation circuit; With a simple three serial interface; Temperature signal can be converted into 12-bit digital Temperature resolution of: 0. 25 Degree; Cold junction compensation range: - 20 ~ + 80 Degree, Embedded thermocouple break detection circuitry. Using SPI 3 wire communication K-type temperature probe Type K temperature range 0-800 degrees     Package Included: 1 X MAX6675 Thermocouple Temperature Sensor 1 X Probe Spring
